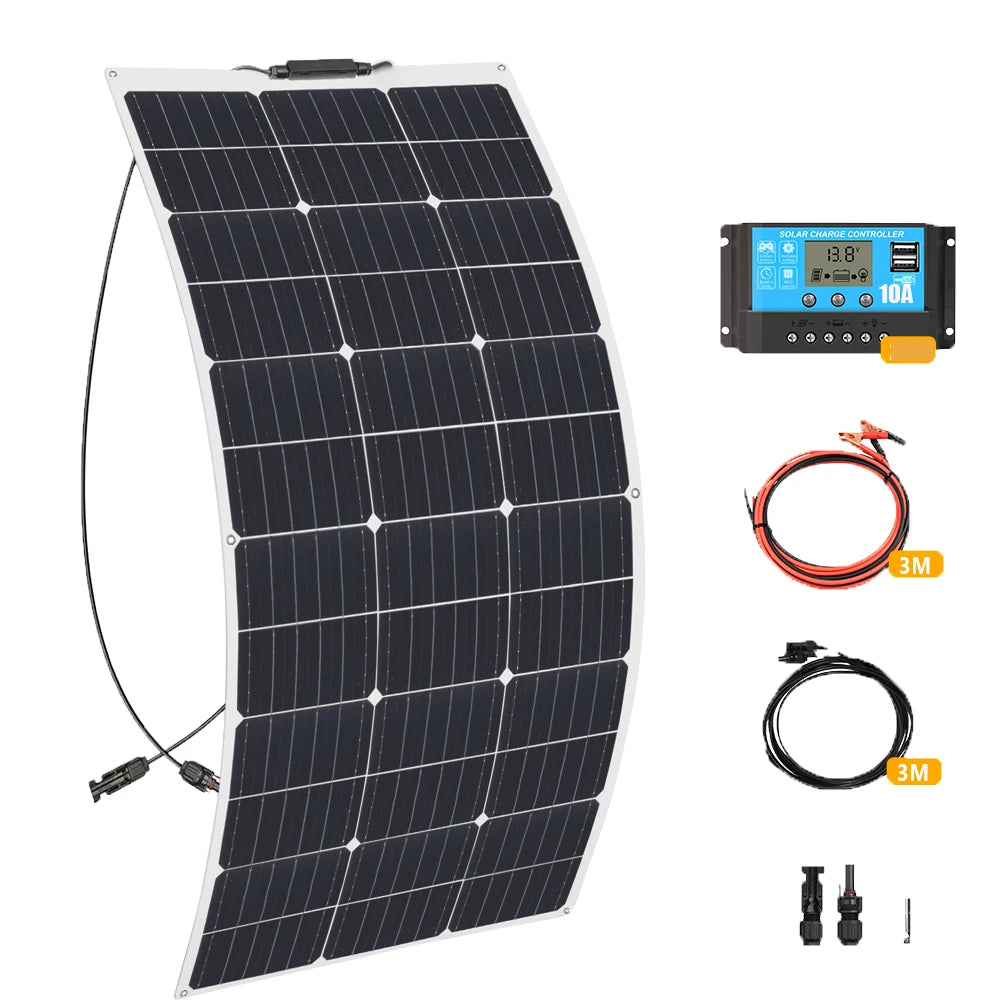

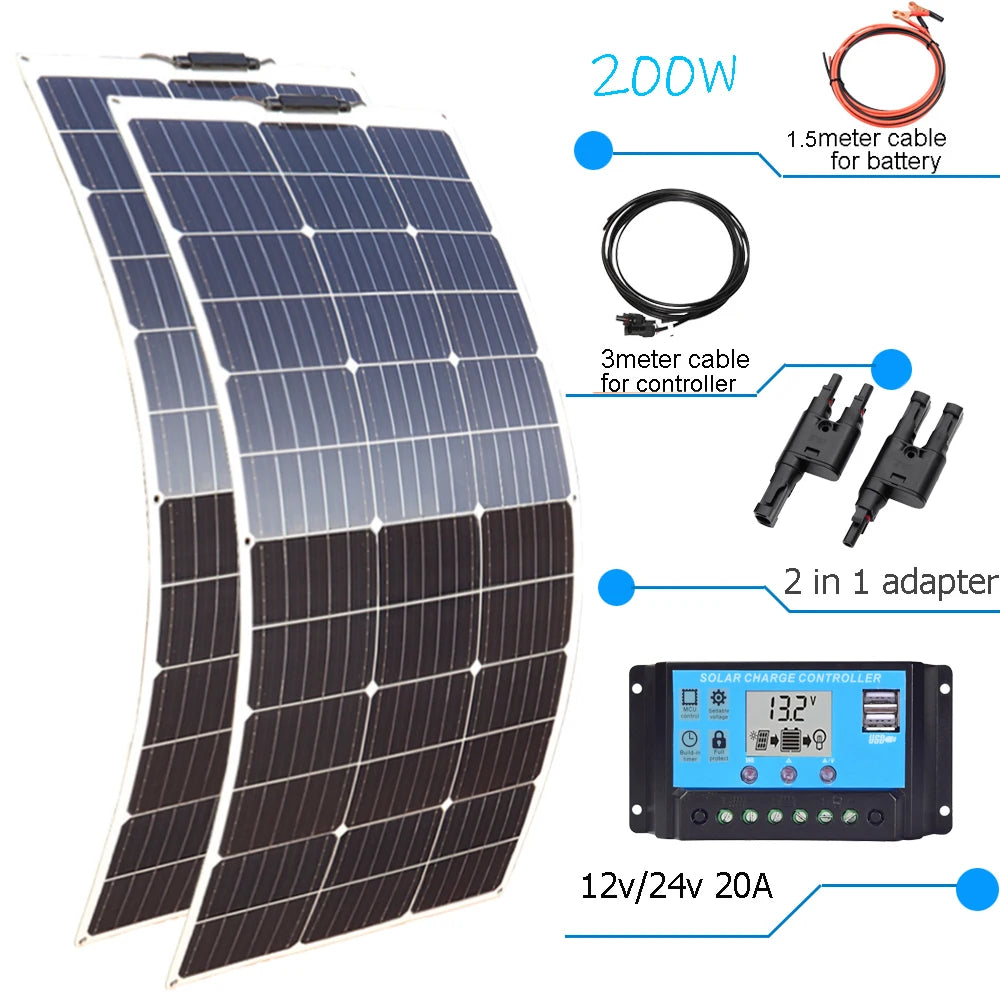

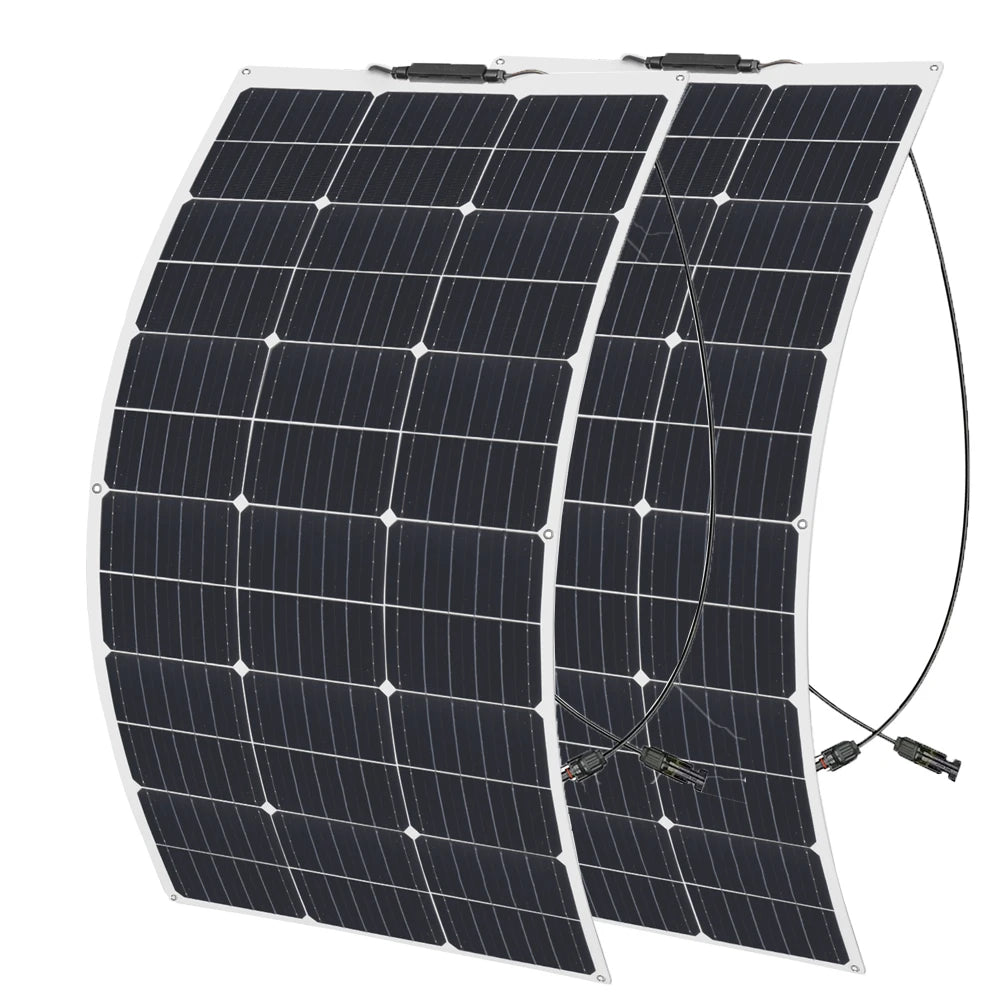

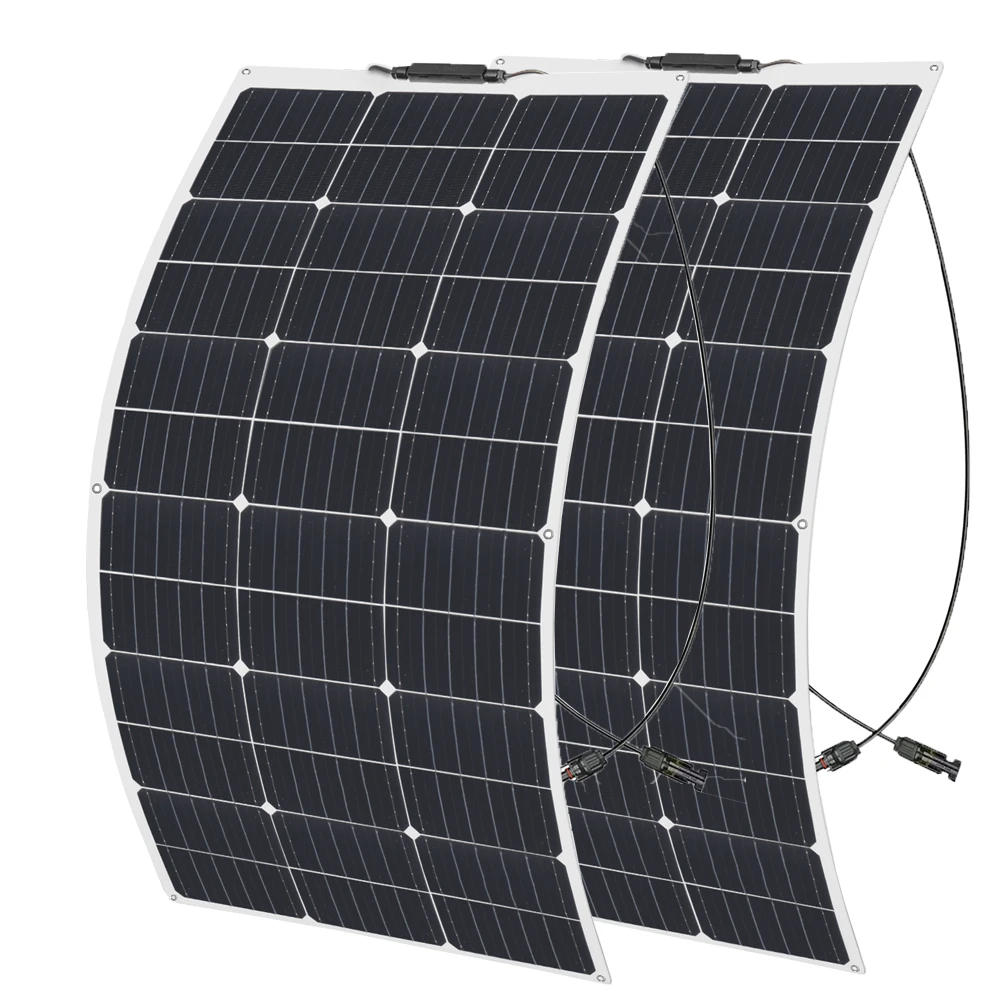

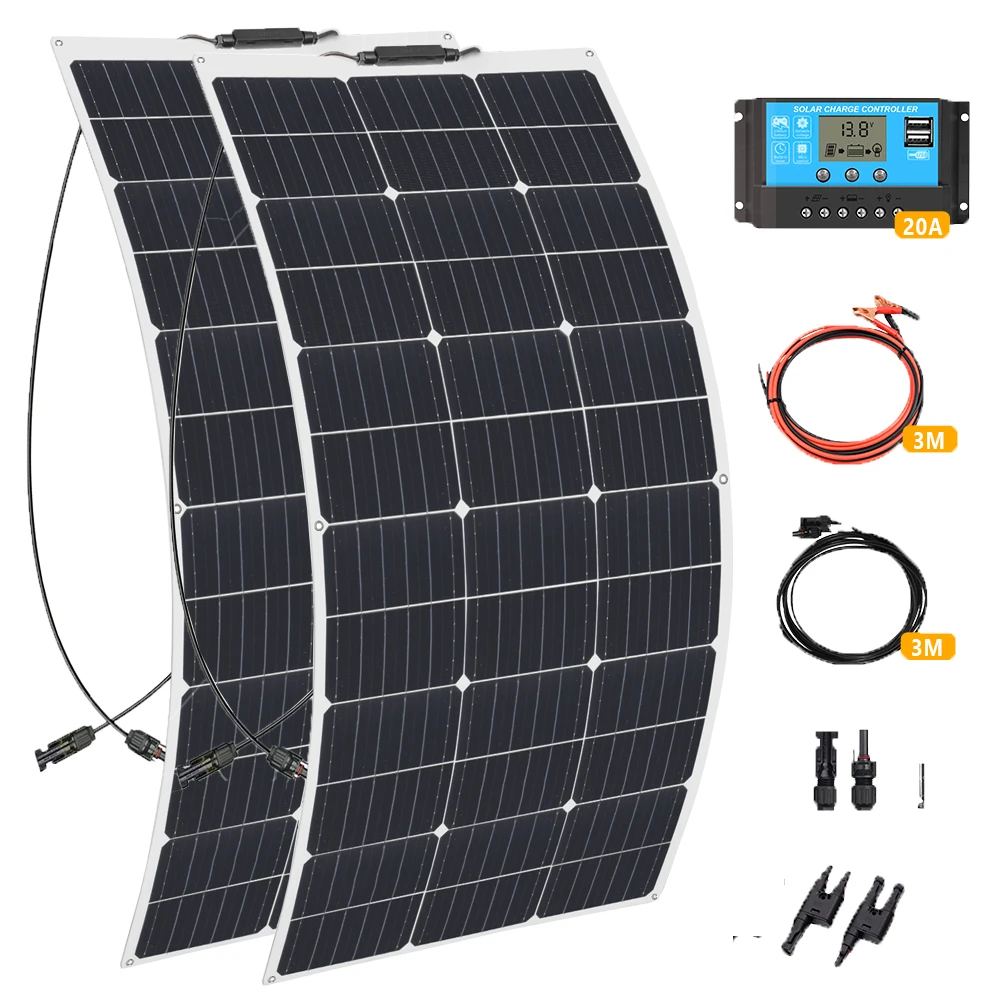

12V Solar Panel Kit complete 100W 200W 24V Flexible Photovoltaic Panel Solar 100W Controller Power CELL for battery Boat Rv Home

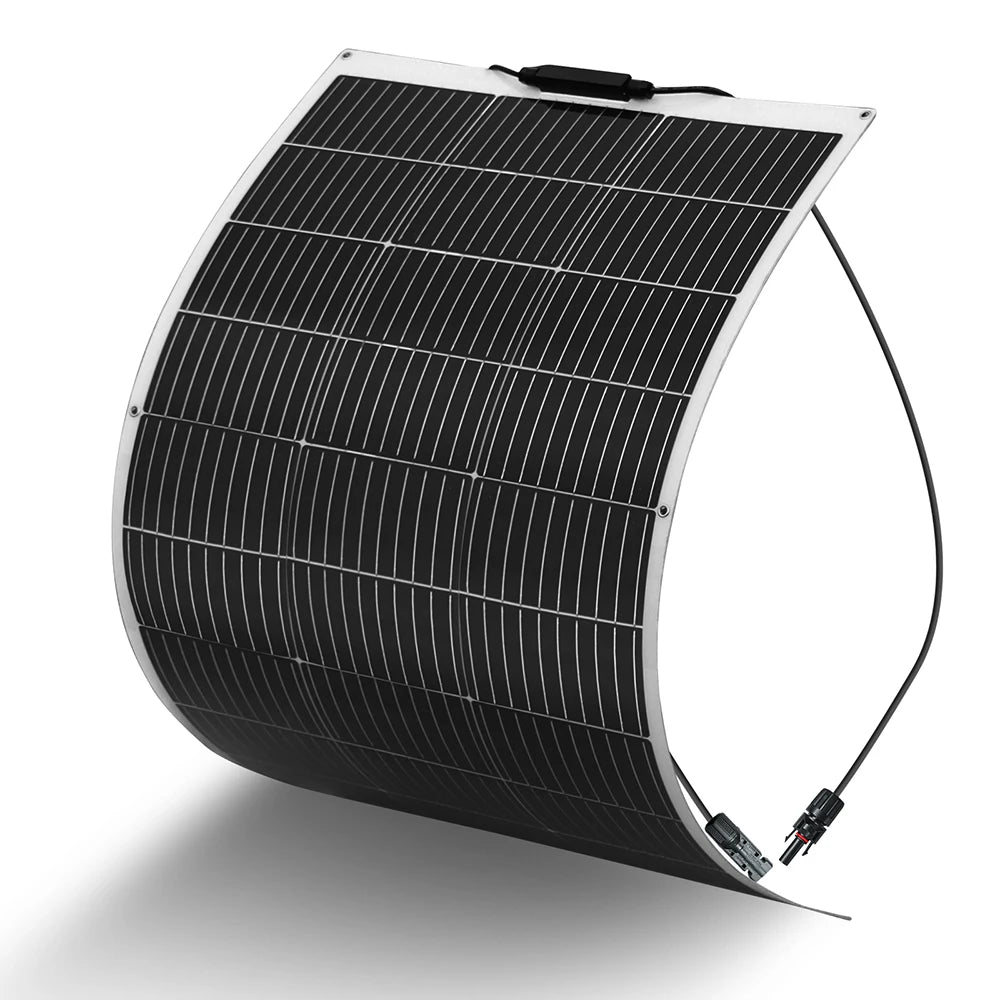

Lightweight -XINPUGUANG's 100Watt solar panel weighs 1.9kg, which is one-half the weight of a conventional solar panel, making it very portable.

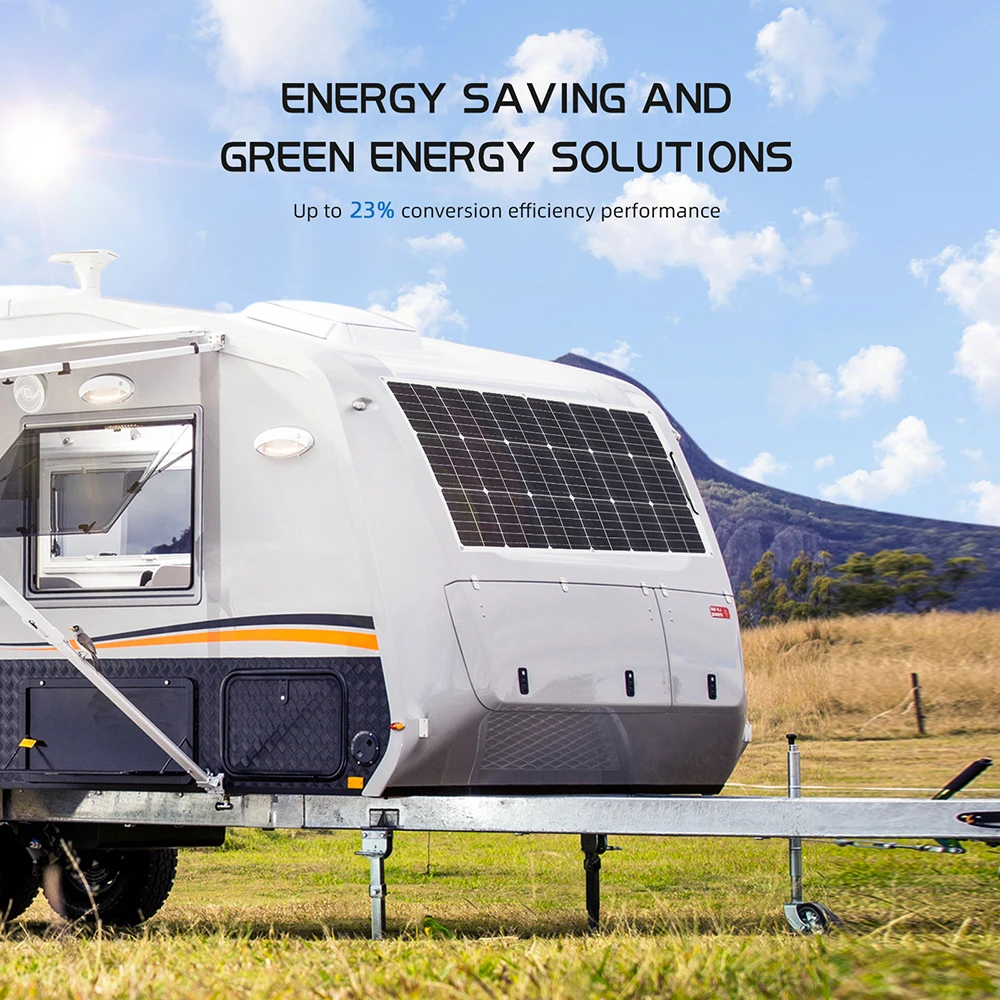

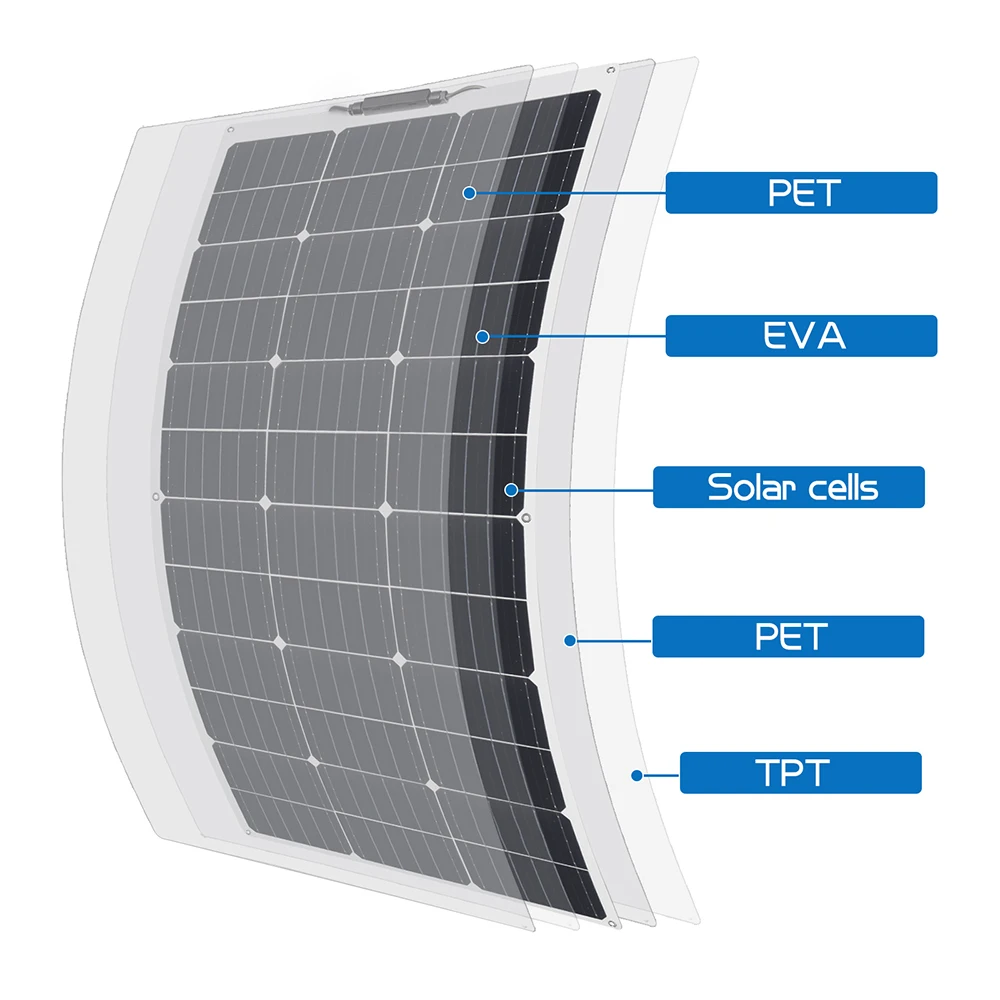

High Efficiency - The solar panel is made with the latest technology PERC high efficiency monocrystalline silicon cells with a conversion rate of 23%. Cut and aligned tightly, the panels are smaller and more suitable for installation on different flat surfaces.

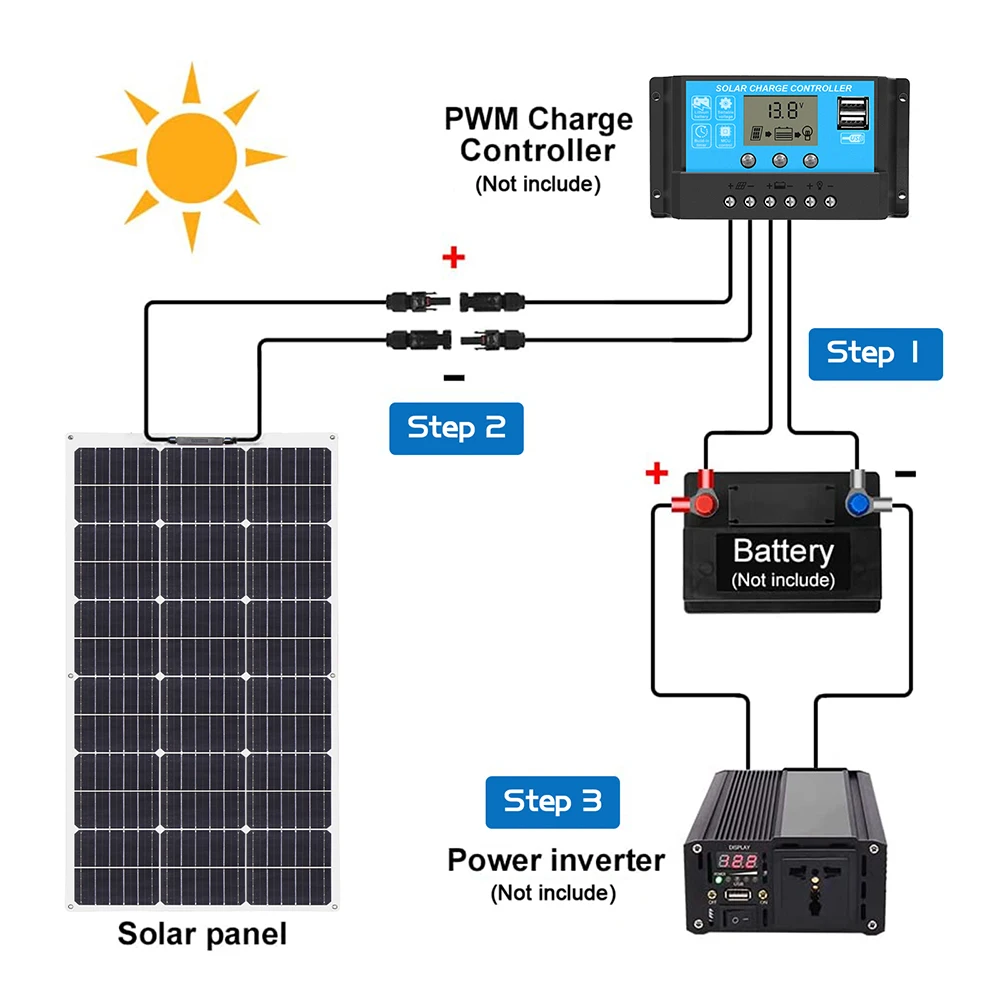

Intelligent-The conntroller have multipleload control modes enable it can be widely used on solar off grid system，System voltage of battery 12V/24V or automatic recognition;Intelligent 4 stages PWM charging: Bulk, Absorption, Equalize, Float；Support more kinds of battery: Lead-acid battery (Sealed, Gel, Flooded) and Lithium battery (LiCoMnNiO2, LiFePO4)

Flexible solar panel Specification

Maximum power(Pmax) 100W

Maximum system voltage 700V DC

Open circuit voltage(Voc) 19.8V

Short circuit current(Isc) 6.66A

Maximum power voltage(Vmp) 16.5V

Maximum power current(Imp) 6.06A

Weight 1.9KG

Size 975*550*3mm / 1000*550*2.5mm

Operating temperature(NOCT) 45 plus or minus 2 Celsius system

STC: lrradiance1000w/m2,Temperature 25 Celsius system, AM=1.5
